In our last update, I wrote about the automated percolation tester and the issues that we were trying to solve. So how did we automate the percolation test? Let me first warn you that this update is going to be somewhat technical, but I’ll do my best to make it easy to understand. I’m hoping that this gives you a bit of an idea of what my day to day work often looks like. If you want more of the technicalities, I’d be happy to send you the 70-page design manual that I’m wrapping up this week.
Overall, the problem is quite simple. We need to do 2 things:
1. Measure the depth of water in the test hole.
2. Fill the hole with water to the prescribed depth depending on the test phase
For this update, I’m just going to focus on the depth sensing (#1), which was the main source of issues throughout this project.

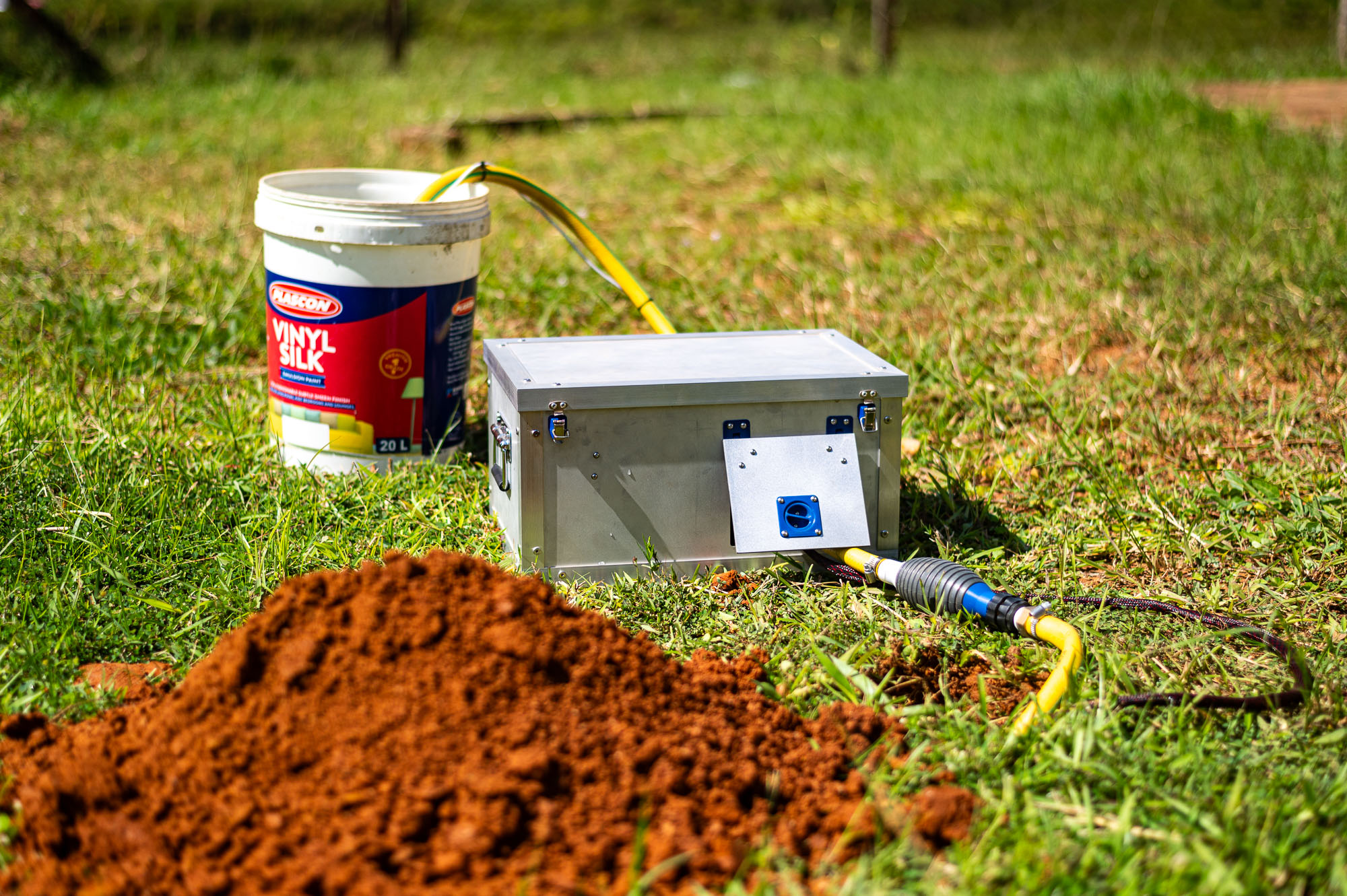

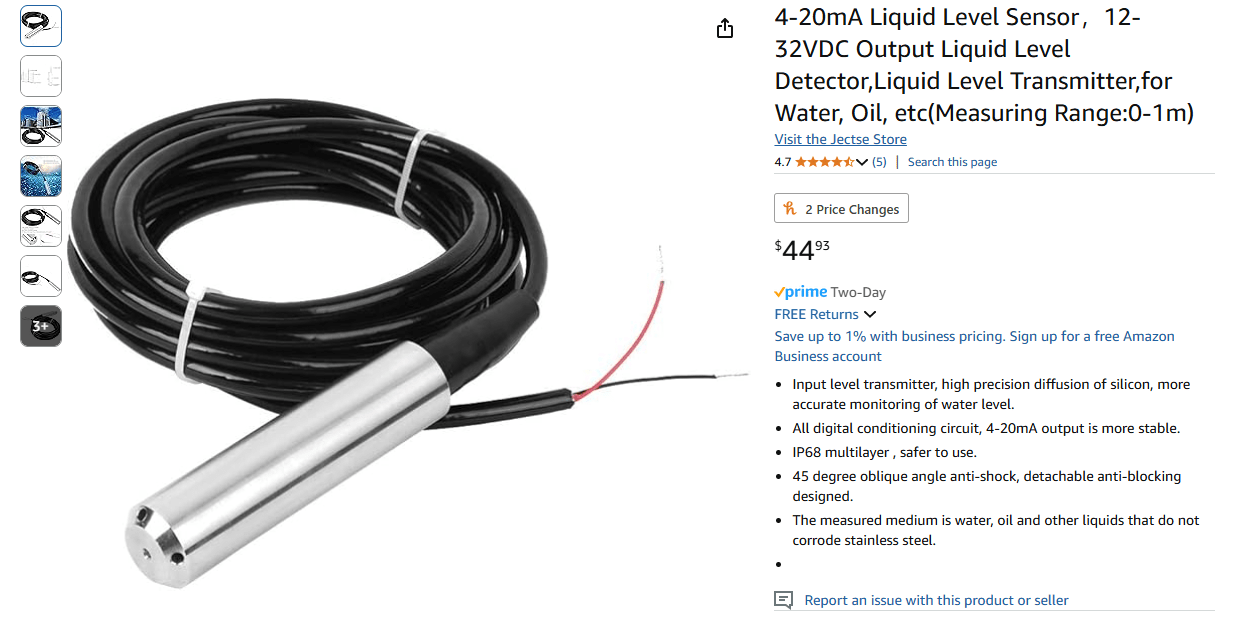

There are many ways to measure the depth of a column of water. The most common method is pressure. If you can measure the pressure at the bottom of the water and compare that to the ambient air pressure, you can determine the depth of the water. Early on in the project, we selected a submersible pressure sensor, easily be sourced on Amazon, that only cost about $35, a very low price for a decent pressure transducer. Early tests were quite positive, so we went ahead and ordered all of the sensors that we needed.
As we continued tests, we realized that the sensor wasn’t quite as consistent as we first thought. The sensor tended to drift over time and had noticeable variation from one test to the next. Nothing huge, but it was cause for concern for a device that would be used for multiple years with minimal maintenance. Even high-quality pressure sensors need annual calibration, which we knew wouldn’t happen once we delivered these to the offices. So, we decided to add a secondary depth measuring system to constantly recalibrate the pressure sensor.
The secondary system needed to be completely separate from the pressure sensor, provide consistent data that wouldn’t drift, and be very cheap. We decided pretty quickly that we wanted to use level switches, which provide a simple on or off signal based on water depth. Think of the ball float in a toilet – when it reaches a set height, it turns off the water flow. In our case, it sends a signal to our control system indicating that the depth just reached the height of that switch. With a number of these switches at set heights, we can get accurate depths as those switches trigger on and off that can be used to double check the values that we’re getting from the pressure sensor.
We decided to complicate things even more by using entirely electrical level switches. This was done to remove any moving parts like a float ball that could get gummed up over time and stop working. The concept is simple: we run one wire to the bottom of the hole that provides a 12V power source, essentially electrifying the water. We then have 6 additional wires with exposed ends held at the desired heights. If they detect voltage, then that means that they are submerged in the electrified water. If no voltage is detected, then they must not be in the water. Sounds simple, right?
This is the part of the story where I explain part of the reason this project took almost a year and a half longer than we initially anticipated. These level switches caused us issue after issue. Our first design worked great initially, but after a few tests some of the level switches started malfunctioning. At first, it was the level switches farthest from the voltage source that weren’t triggering high when submerged. After we solved that, they started not triggering low after the water level drained below them. We designed iteration after iteration: calibrating the voltage dividers on the PCB, changing wire types due to corrosion and issues, changing level switch mounting schemes to minimize water film sending false electrical signals, and even making changes to 3D print layer direction to prevent capillary-flow up the level switch assembly. We changed the base design for better printing quality and stability, added a stabilizing ring to keep the sensor upright in the test hole, and made a lot of other almost invisible improvements that work to ease assembly and maintenance of this component.

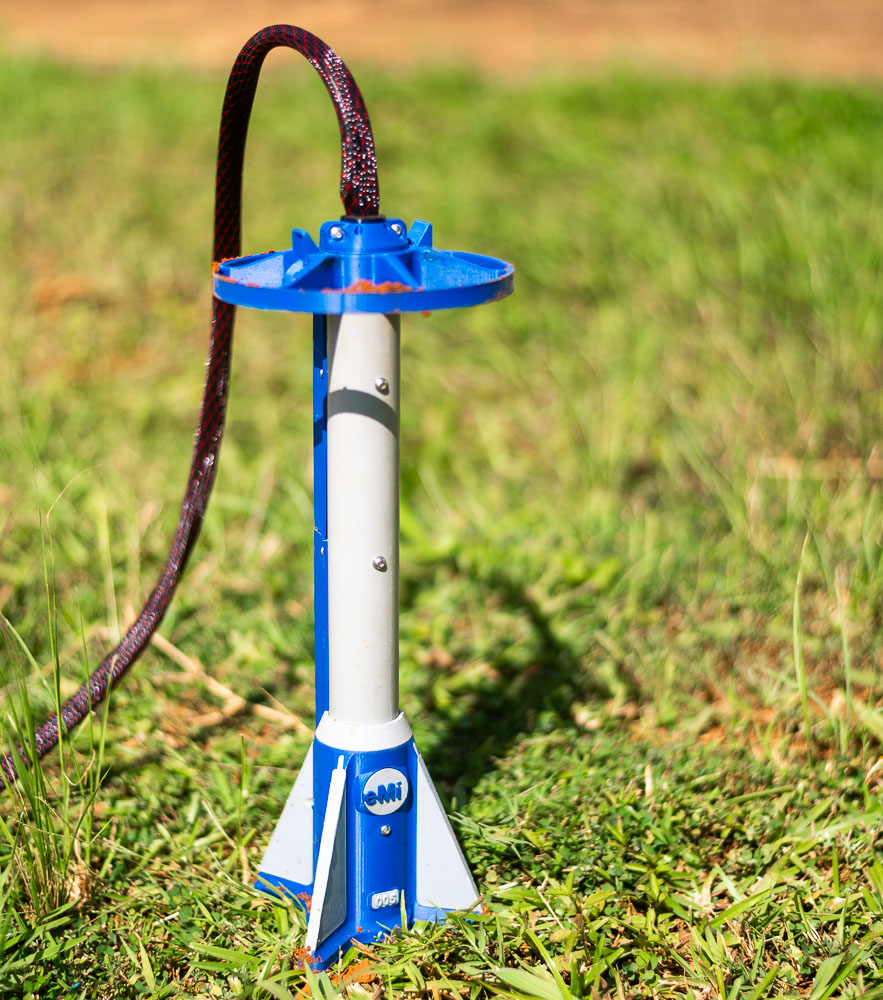

I could go into much more detail about all of the design considerations, but that would take a lot of time, and I doubt anyone would read it. But I am quite proud of the final design of this depth sensor assembly. In total, the full assembly can be made for about $45 (or about $55 with the current price of the pressure sensor), and I think it is a much more reliable system than just a pressure transducer at 5 times that price. At the end of the day, our goal was to make a reliable system that would lead to better data, which in turn would result in better septic systems for our ministry partners. These devices have already been used to size 4 septic systems over the past few months – I’m excited to seem them being used on EMI project sites around the world.
